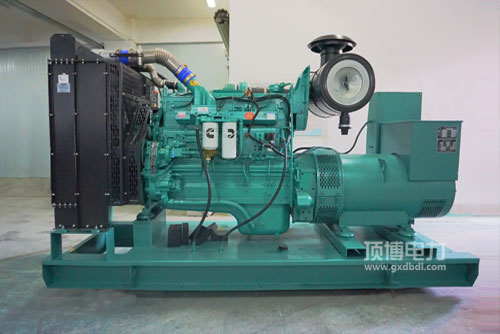

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用热车机汽柴油成本性好: 先进典型的汽柴油保持系統，独具特色的STC、ESTC 分等级保持系統，层次性设计制作的气缸边侧引燃室，高压变压器喷涌汽柴油，有力吸雾，引燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用发起机瞬态性能方面高品质: 完满的发起机综合结构设计，相互配合康明斯鲜明的EFC软件系统，调节精密度较高，没有响应日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用发起机升瓦数高: 产品装修设计紧身.外型布置房间合适，运作稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50无法中国内地非高架道路再者时段及亚洲Tier2. Tier 3排放量法规标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件能得性好， 启行为操作及维修新车保养新车保养快捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率时间范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯发电机组用打火机的优点：空间小， 压解比低， 格珊气流加温，方便于无法，移動车载多媒体供电的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起驱力类型	使用输出(kW)Prime Power	备品电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
